Duman Kontrol Damperleri

layer

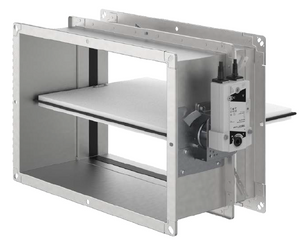

EKA2-EU

Rectangular smoke control dampers with air extract function, for smoke extraction with mechanical smoke extract systems or as an additional supply air inlet

  • Complies with product standard DIN EN 12101-8 and is classified in accordance with DIN EN 13501-4
  • Classified EI 90/120 (vedw,how i<->o) S 1000/1500 Cmod AA multi
  • Pressure level 2 (-1000 Pa - 500 Pa) and pressure level 3 (-1500 Pa - 500 Pa) depending on usage
  • Can be used in smoke extract systems or in heating and ventilation systems or in a combination of these
  • For systems that require automatic release (AA)
  • Wide range of application options for fire compartment separation
  • Single-blade room partitioning with mechanical resistance
  • Sheet steel construction in lightweight design
  • Silicone free
  • No stop bars, therefore large free cross-section
  • Leakage tightness class at least 3C for casing and damper tightness, in accordance with DIN EN 1751
  • Thermal insulation with insulating wool (optionally, as it depends on the airflow direction)
  • Connection to air ducts in accordance with DIN EN 1366-1 and DIN EN 1366-8 (self-contained duct system or thermally insulated) or tested in accordance with DIN EN 1366-9
  • For smoke extract ducts made of sheet steel or independent smoke extract ducts from 35 mm wall thickness and in air shafts
  • Integration into the management and control equipment with TROXNETCOM or with various control bus systems possible

daha fazla bilgi

layer

EK-EU

Rectangular smoke control dampers with extract ventilation function, for smoke extract with mechanical smoke extract systems or as an additional supply air inlet

  • Nominal sizes 200 × 200 – 1500 × 800 mm, in increments of 1 mm
  • Casing, damper blade and actuator encasing made of temperature-resistant calcium silicate
  • Remote control with actuator
  • Pressure level 3 (operating pressure –1500 to 500 Pa)
  • Manual or automatic release
  • For smoke extract ducts from 35 mm wall thickness
  • Cmod = ventilation function and intermediate positions for flow rate balancing
  • Casing air leakage to EN 1751, class C

Optional equipment and accessories

  • Connecting subframe
  • Cover grille
  • Integration into the central BMS with TROXNETCOM

daha fazla bilgi
